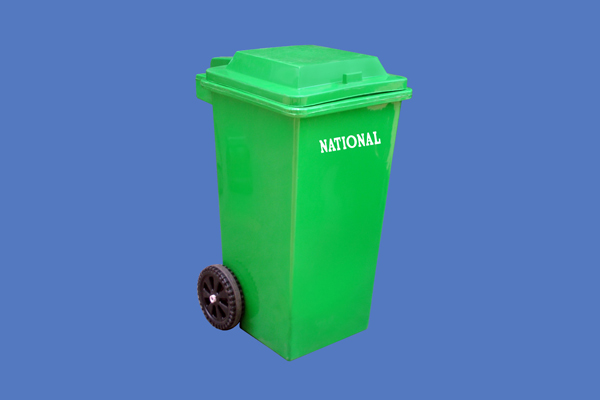

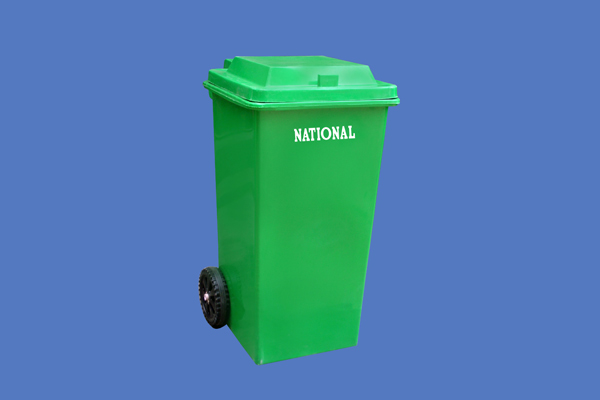

Wheel Waste Bin
Size:.
- 120 LT & 240 LT Also Available With Pedal
- 120 LT, 240 LT,360 Lt, 660 LT, 1100 LT
For Further Series Specification Download the PDF
Swing Bin
| Swing Bin Dimension Chart | |||
| All Dimension in MM | |||
| Size | 32 ltrs | 60 ltrs | 80 Ltrs |
| Height with Lid | 570 | 720 | 810 |
| Height Without Lid | 420 | 570 | 600 |
| Dia top side | 356 | 450 | 475 |
| Dia bottom side | 280 | 340 | 380 |
| Weight With Lid in Kg. | 1.25 | 2.20 | 3.00 |
For Further Series Specification Download the PDF

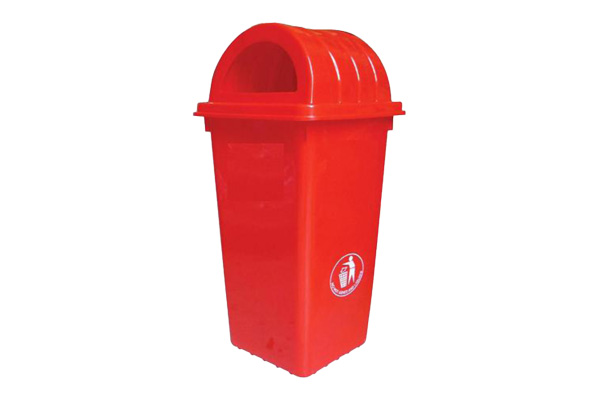

Waste Bin With Dome
|
Dimension Chart for Dome lid Wastebin |
||
|
Model |
80 ltrs |
110 ltrs |
| Approx Volume ( Ltrs ) |
80 |
110 |
| Article Weight ( Kgs ) |
3.4 |
4.2 |
| Useful Load ( Kgs ) |
45 |
55 |
| Overall Height ( mm ) |
900 |
940 |
| Overall Width ( mm ) |
430 |
500 |
| Overall Depth ( mm ) |
600 |
600 |
| Overall Edge ( mm ) |
695 |
695 |
| Window Size ( mm ) |
265 x 135 |
340 x 160 |
| All The dimension & Capacity are approximate & Only for reference. | ||
| –>Subject to technical modification | ||
| –> Container according to EN standard. | ||
For Further Series Specification Download the PDF
Waste Bin with flat lid
| Item Code | Capacity | Dimension |
| Storage Bucket 60 | 60 LTR | 26 X 23x CM |
| Storage Bucket 80 | 80 LTR | 28 X 26x CM |
| Storage Bucket 110 | 110 LTR | 32 X 30x CM |
For Further Series Specification Download the PDF

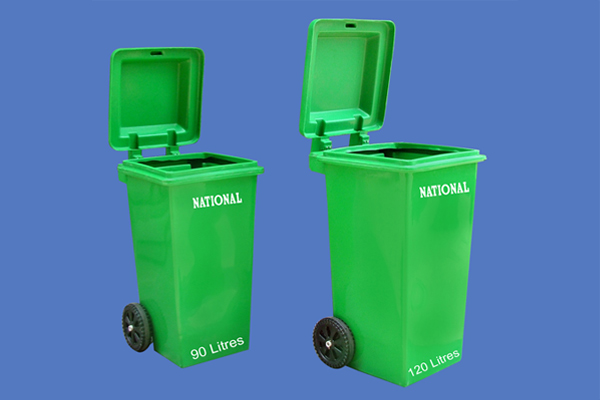

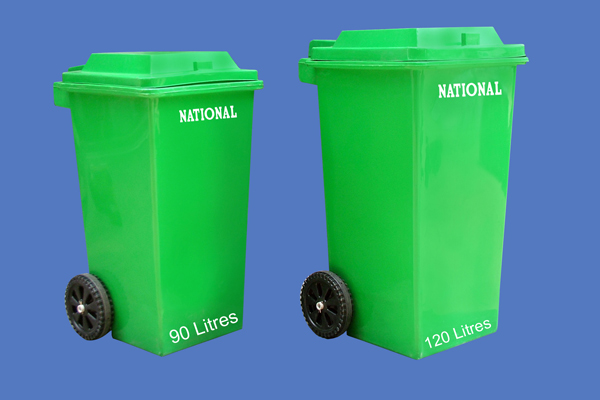

Dustbin
| Code-No | Capacity
(In Litres) |
Dimensions in CMS | ||
| Top | Bottom | Height | ||
| NDB | 90 | 55 | 48 | 84 |
| NDB | 120 | 56 | 52 | 89 |
